6061 vs 6082 Aluminum: A Comprehensive Comparison Guide
Aluminum alloys 6061 and 6082 both belong to the 6000-series (aluminum-magnesium-silicon alloys), a category valued for its balance of strength, formability, and cost-effectiveness. However, their distinct chemical compositions and performance traits make them suited for vastly different applications. This guide breaks down their key characteristics, differences, and selection criteria.

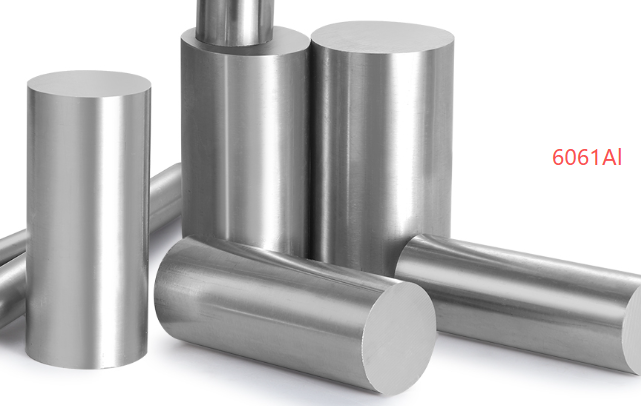

First. Core Characteristics of 6061 Aluminum
6061 is one of the most versatile and widely used 6000-series alloys, celebrated for its well-rounded performance and ease of processing.
- Chemical Composition: Primarily composed of 0.8-1.2% magnesium (Mg), 0.4-0.8% silicon (Si), and a small addition of copper (0.15-0.40% Cu). The copper enhances natural aging and overall strength.
- Mechanical Performance (T6 Temper, Most Common):
- Tensile Strength: ~310 MPa
- Yield Strength: ~276 MPa
- Elongation: 8-15% (excellent for applications requiring some flexibility)
- Key Advantages:
- Superior cold workability: Easily formed into complex shapes via bending, stamping, or extrusion.
- Smooth machinability: Minimal tool sticking, reducing processing time and tool wear.
- Strong corrosion resistance: Performs well in mild environments (e.g., indoor electronics, consumer goods) and accepts surface treatments like anodizing easily.
- Cost-efficiency & availability: Abundant stock globally, with shorter lead times and lower costs compared to 6082.
- Typical Applications: Bicycle frames, electronic device enclosures, automotive interior parts, (molds), decorative components, and lightweight structural parts with moderate load requirements.

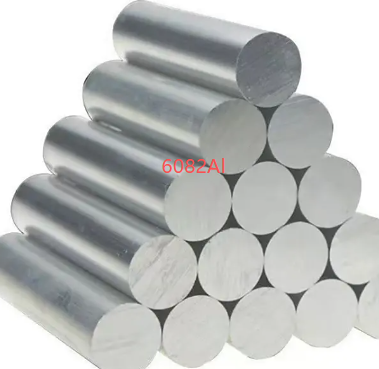

Second. Core Characteristics of 6082 Aluminum
6082 is a high-strength variant of the 6000-series, engineered for heavy-duty structural and load-bearing scenarios.
- Chemical Composition: Contains 0.6-1.2% magnesium (Mg), 0.7-1.3% silicon (Si), and a notable addition of manganese (0.4-1.0% Mn); copper content is limited to 0.10%. Manganese is critical for boosting weld joint strength and fatigue resistance.
- Mechanical Performance (T6 Temper):
- Tensile Strength: ~370 MPa (19% higher than 6061)
- Yield Strength: 340-360 MPa (23-30% higher than 6061)
- Elongation: Slightly lower than 6061 (typically 6-12%), trading some ductility for strength.
- Key Advantages:
- Exceptional strength & fatigue resistance: Ideal for long-term load-bearing in harsh conditions (e.g., outdoor structures, marine environments).
- Enhanced weld joint durability: Manganese reduces weld softening and improves corrosion resistance at welded seams.
- Good atmospheric/seawater corrosion resistance: Performs better than 6061 in humid or salt-exposed settings (e.g., coastal bridges, ships).
- Key Limitations:
- Poor cold workability: High tendency for hot working hardening, making it difficult to form complex shapes without specialized equipment.
- Higher processing costs: Requires harder cutting tools and more energy for machining; small-batch orders often have longer lead times.
- Higher material cost: Typically 7-12% more expensive than 6061 due to its specialized composition.
- Typical Applications: Bridge components, ship hulls, automotive chassis and suspension parts, crane booms, heavy machinery frames, and offshore structural elements.
Third. Key Differences Between 6061 and 6082 Aluminum
The table below summarizes the critical distinctions to guide material selection:
Comparison Dimension 6061 Aluminum 6082 Aluminum
Fourth. Selection Guide: How to Choose Between 6061 and 6082
- Choose 6061 if:
- Your project requires complex cold forming or easy machining.
- You need good corrosion resistance for indoor/mild outdoor use.
- Cost and quick delivery are top priorities.
- Applications: Electronic enclosures, bicycle frames, decorative parts.
- Choose 6082 if:
- Your part must bear heavy, long-term loads (e.g., structural supports).
- It will be exposed to harsh environments (saltwater, humidity, outdoor weather).
- Weld joint strength is critical (e.g., bridges, ships).
- Applications: Automotive chassis, crane booms, marine components.
Final Summary
6061 and 6082 represent two ends of the 6000-series spectrum: 6061 is the "all-purpose" alloy, excelling
First. Core Characteristics of 6061 Aluminum
- Chemical Composition: Primarily composed of 0.8-1.2% magnesium (Mg), 0.4-0.8% silicon (Si), and a small addition of copper (0.15-0.40% Cu). The copper enhances natural aging and overall strength.
- Mechanical Performance (T6 Temper, Most Common):
- Tensile Strength: ~310 MPa
- Yield Strength: ~276 MPa
- Elongation: 8-15% (excellent for applications requiring some flexibility)
- Key Advantages:
- Superior cold workability: Easily formed into complex shapes via bending, stamping, or extrusion.
- Smooth machinability: Minimal tool sticking, reducing processing time and tool wear.
- Strong corrosion resistance: Performs well in mild environments (e.g., indoor electronics, consumer goods) and accepts surface treatments like anodizing easily.
- Cost-efficiency & availability: Abundant stock globally, with shorter lead times and lower costs compared to 6082.
- Typical Applications: Bicycle frames, electronic device enclosures, automotive interior parts, (molds), decorative components, and lightweight structural parts with moderate load requirements.
Second. Core Characteristics of 6082 Aluminum
- Chemical Composition: Contains 0.6-1.2% magnesium (Mg), 0.7-1.3% silicon (Si), and a notable addition of manganese (0.4-1.0% Mn); copper content is limited to 0.10%. Manganese is critical for boosting weld joint strength and fatigue resistance.
- Mechanical Performance (T6 Temper):
- Tensile Strength: ~370 MPa (19% higher than 6061)
- Yield Strength: 340-360 MPa (23-30% higher than 6061)
- Elongation: Slightly lower than 6061 (typically 6-12%), trading some ductility for strength.
- Key Advantages:
- Exceptional strength & fatigue resistance: Ideal for long-term load-bearing in harsh conditions (e.g., outdoor structures, marine environments).
- Enhanced weld joint durability: Manganese reduces weld softening and improves corrosion resistance at welded seams.
- Good atmospheric/seawater corrosion resistance: Performs better than 6061 in humid or salt-exposed settings (e.g., coastal bridges, ships).
- Key Limitations:
- Poor cold workability: High tendency for hot working hardening, making it difficult to form complex shapes without specialized equipment.
- Higher processing costs: Requires harder cutting tools and more energy for machining; small-batch orders often have longer lead times.
- Higher material cost: Typically 7-12% more expensive than 6061 due to its specialized composition.
- Typical Applications: Bridge components, ship hulls, automotive chassis and suspension parts, crane booms, heavy machinery frames, and offshore structural elements.
Third. Key Differences Between 6061 and 6082 Aluminum
The table below summarizes the critical distinctions to guide material selection:
Comparison Dimension 6061 Aluminum 6082 Aluminum
Chemical Marker Contains trace copper; lower silicon Contains manganese; higher silicon; no copper
Strength (T6) Moderate (tensile: ~310 MPa) High (tensile: ~370 MPa)
Ductility Better (elongation: 8-15%) Lower (elongation: 6-12%)
Cold Workability Excellent Poor
Machinability Smooth (low tool wear) Challenging (needs hard tools; higher energy)
Weldability Easy (no preheating; low hot cracking risk) Possible but requires control (preheating for thin parts)
Corrosion Resistance Strong (mild environments) Stronger in harsh settings (seawater/atmosphere)
Cost Lower Higher (7-12% premium)
Availability Abundant (short lead times) Limited (longer lead times for small batches)Fourth. Selection Guide: How to Choose Between 6061 and 6082
- Choose 6061 if:
- Your project requires complex cold forming or easy machining.
- You need good corrosion resistance for indoor/mild outdoor use.
- Cost and quick delivery are top priorities.
- Applications: Electronic enclosures, bicycle frames, decorative parts.
- Choose 6082 if:
- Your part must bear heavy, long-term loads (e.g., structural supports).
- It will be exposed to harsh environments (saltwater, humidity, outdoor weather).
- Weld joint strength is critical (e.g., bridges, ships).
- Applications: Automotive chassis, crane booms, marine components.
Final Summary
6061 and 6082 represent two ends of the 6000-series spectrum: 6061 is the "all-purpose" alloy, excelling
